Emergency Egress Capacity Calculation: How to Determine Safe Venue Evacuation Widths and Flow Rates

In assembly venues, stadiums, and festival arenas, emergency egress calculations form the bedrock of life safety. The objective is straightforward: ensuring that in the event of fire, structural failure, or an acute threat, every occupant can exit the building or confined space and reach a designated place of safety before conditions become untenable.

Yet across post-incident investigations—from the Station nightclub fire to recent festival crushes—egress calculations are frequently found to have relied on optimistic assumptions rather than empirical crowd physics. This guide synthesizes established crowd flow engineering principles from John J. Fruin's pedestrian dynamics, the UK Green Guide (6th ed., 2018), and NFPA 101: Life Safety Code (2024 ed.) to give venue directors and event managers an actionable framework for determining exit capacities.

The Physics of Evacuation: Fruin's Flow Rate Benchmarks

Pedestrian movement through exit corridors operates on fluid-dynamic principles governed by density. In his foundational work Pedestrian Planning and Design (1971), Dr. John J. Fruin demonstrated that unimpeded walking speed (~1.3 metres per second) deteriorates rapidly as density approaches 2 to 3 persons per square metre. Above 4 persons per square metre, individual control ceases, and movement becomes involuntary.

For egress calculation purposes, empirical field observations synthesized in the UK Sports Grounds Safety Authority (SGSA) Guide to Safety at Sports Grounds (Green Guide, 6th ed., 2018, Section 10.3) establish two critical flow rate baselines:

• Level Passageways and Exit Doors: Calculated at 82 persons per minute per metre of clear width (approx. 45 persons per minute per 550 mm unit width).
• Stairways (Downwards Flow): Calculated at a reduced rate of 66 persons per minute per metre of clear width (approx. 36 persons per minute per 550 mm unit width) due to the biomechanics of vertical descent and increased trip hazard.

Crucially, effective width is not measured wall-to-wall. Boundary layer deductions must be applied: people instinctively avoid brushing shoulders against walls or handrails. When sizing a corridor, subtract 150 mm on each side (300 mm total) to determine the “effective clear width” that will actually support continuous crowd flow.

Target Evacuation Times: 2.5 Minutes vs 8 Minutes

Evacuation time is not a generic figure; it depends strictly on the fire resistance and compartmentation of the structure. The Green Guide (§10.2) distinguishes two primary benchmarks for reaching a “Zone of Safety” (a public road or clear concourse with no fire exposure):

• 8.0 Minutes (Normal Assembly Structures): Applicable to modern venues built from non-combustible materials (concrete, masonry, structural steel) equipped with monitored fire alarm systems and wide dispersal zones.
• 2.5 Minutes (Combustible or High-Hazard Structures): Mandated where building components (such as timber grandstands or temporary tent structures) present rapid flame-spread characteristics, or where escape routes are exposed to toxic combustion products.

Under statutory safety licensing, event organizers must verify which target evacuation time applies to their specific occupancy before sizing exit doors. You can model these thresholds instantly using our interactive Emergency Evacuation Calculator.

NFPA 101 Life Safety Code: Capacity Factors for Assembly Occupancies

In the United States, venue egress sizing is governed by NFPA 101: Life Safety Code (2024 ed.), Section 12.2.3. Rather than flow rates per minute, NFPA 101 applies a dimensionless capacity factor per person to establish the required cumulative width across all means of egress:

• Level Corridors, Passageways, and Ramps (§12.2.3.2): A minimum clear width of 0.2 inches (5.1 mm) per person.
• Stairways and Stepped Aisles (§12.2.3.2): A minimum clear width of 0.3 inches (7.6 mm) per person.
• Smoke-Protected Assembly Seating (§12.4.3): Where an arena is equipped with an engineered smoke control system and automatic sprinklers, capacity factors are relaxed substantially (down to 0.05 inches / 1.3 mm per person for level exits), reflecting the extended tenability of the environment.

For example, in a non-sprinklered 3,000-seat civic auditorium, the required cumulative exit door width under NFPA 101 is: 3,000 occupants × 0.2 inches = 600 inches (15.24 metres) of clear opening distributed across compliant exits.

German Assembly Standards: MVStättVO §7 Clear Width Ratios

In Germany, the model places of assembly ordinance (Muster-Versammlungsstättenverordnung / MVStättVO, §7) sets prescriptive exit geometry rather than performance-based timing:

• Baseline Dimension: Every part of an escape route must maintain a minimum clear width of 1.20 metres.
• Indoor Assembly Rooms: Requires 1.20 metres of clear width for every 200 occupants (a ratio of 6.0 mm per person).
• Outdoor Stadiums and Arenas: Requires 1.20 metres of clear width for every 600 occupants (a ratio of 2.0 mm per person), reflecting open-air dispersal and low smoke accumulation risks.

Step-by-Step Worked Example: Sizing Exits for a 4,000-Capacity Venue

To see how these principles apply in practice, let us calculate the required egress provision for a multi-purpose indoor event hall with a licensed capacity of 4,000 attendees, non-combustible construction, and a target evacuation time of 8 minutes.

Using the standard flow formula: Total Clear Width (W) = Number of Occupants (N) / (Evacuation Time in minutes (T) × Flow Rate (F))

1. Calculate Total Required Width:
   W = 4,000 / (8 minutes × 82 persons/min/m) = 4,000 / 656 = 6.10 metres.
2. Apply the “One-Exit Blocked” Principle:
   A foundational requirement of life-safety engineering (Green Guide §10.8) is redundancy: you must assume that during an emergency, the largest single exit is rendered unusable by fire or obstruction. If the venue provides four identical double exits of 2.05 m width each (8.20 m total), losing one 2.05 m exit leaves 8.20 m - 2.05 m = 6.15 m, which satisfies the 6.10 m minimum requirement.
3. Verify Doorway Clearances and Hardware:

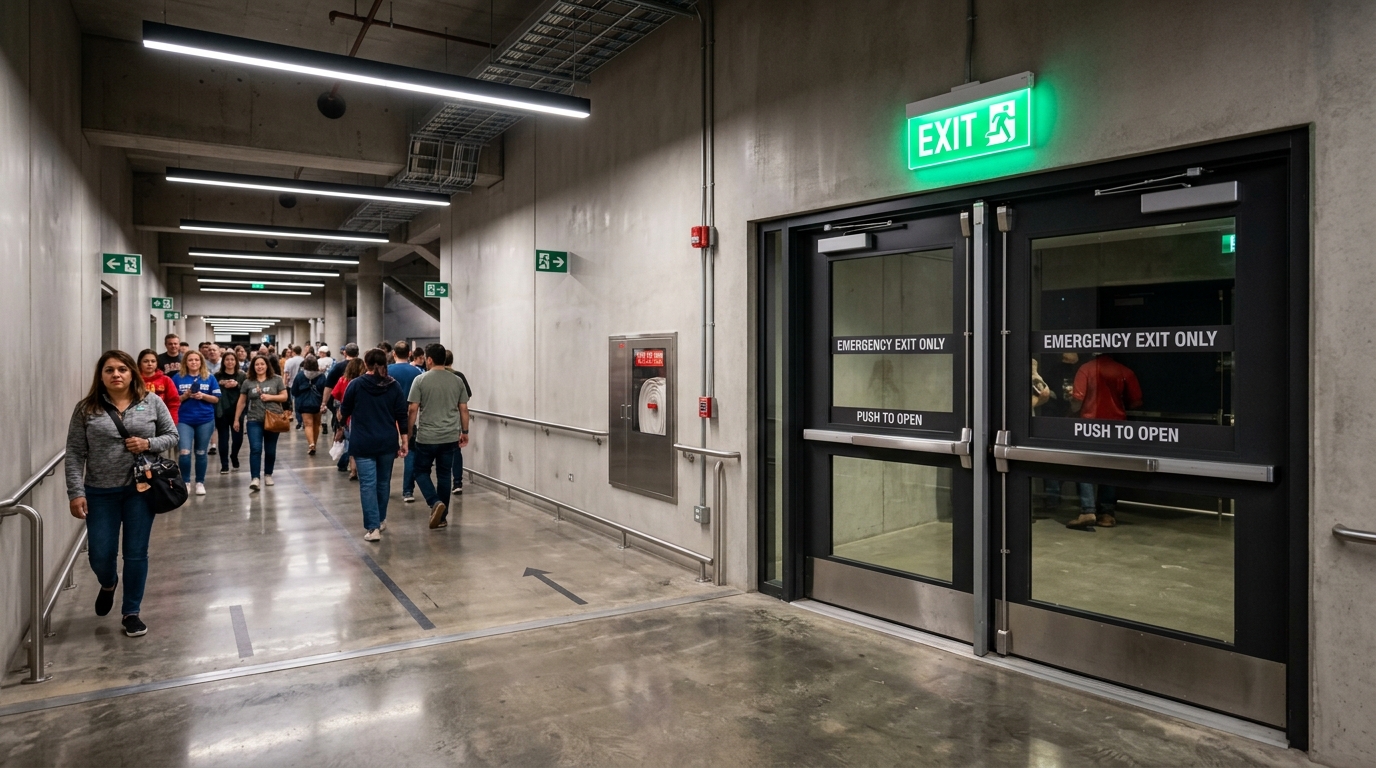

   Clear width must be measured at the narrowest point—between the face of the open door leaf and the stop jamb, not the frame rough opening. All doors must be equipped with horizontal panic crash bars compliant with local codes and swing outward in the direction of travel.

Operational Checklist: Preventing Egress Failures on Event Day

Even a mathematically flawless egress plan fails if physical barriers obstruct flow. Venue operations directors should enforce this five-point pre-doors protocol:

• Inspect Panic Hardware: Physically push every exit crash bar to confirm smooth unlatching without key, tool, or excessive force (NFPA 101 §7.2.1.7).
• Clear Corridors of Storage: Remove flight cases, rolling beer kegs, and temporary queue stanchions stored behind fire doors.
• Verify Secondary Route Illumination: Test battery-backup emergency lighting along the entire path of travel out to the public right of way.
• Brief Frontline Stewards on Exit Locations: Ensure temporary crew know every secondary exit, not just the front lobby doors they entered through.
• Check External Discharge Gates: Verify that perimeter gates leading to outer car parks are unlocked and free of parked delivery vans or skips.
